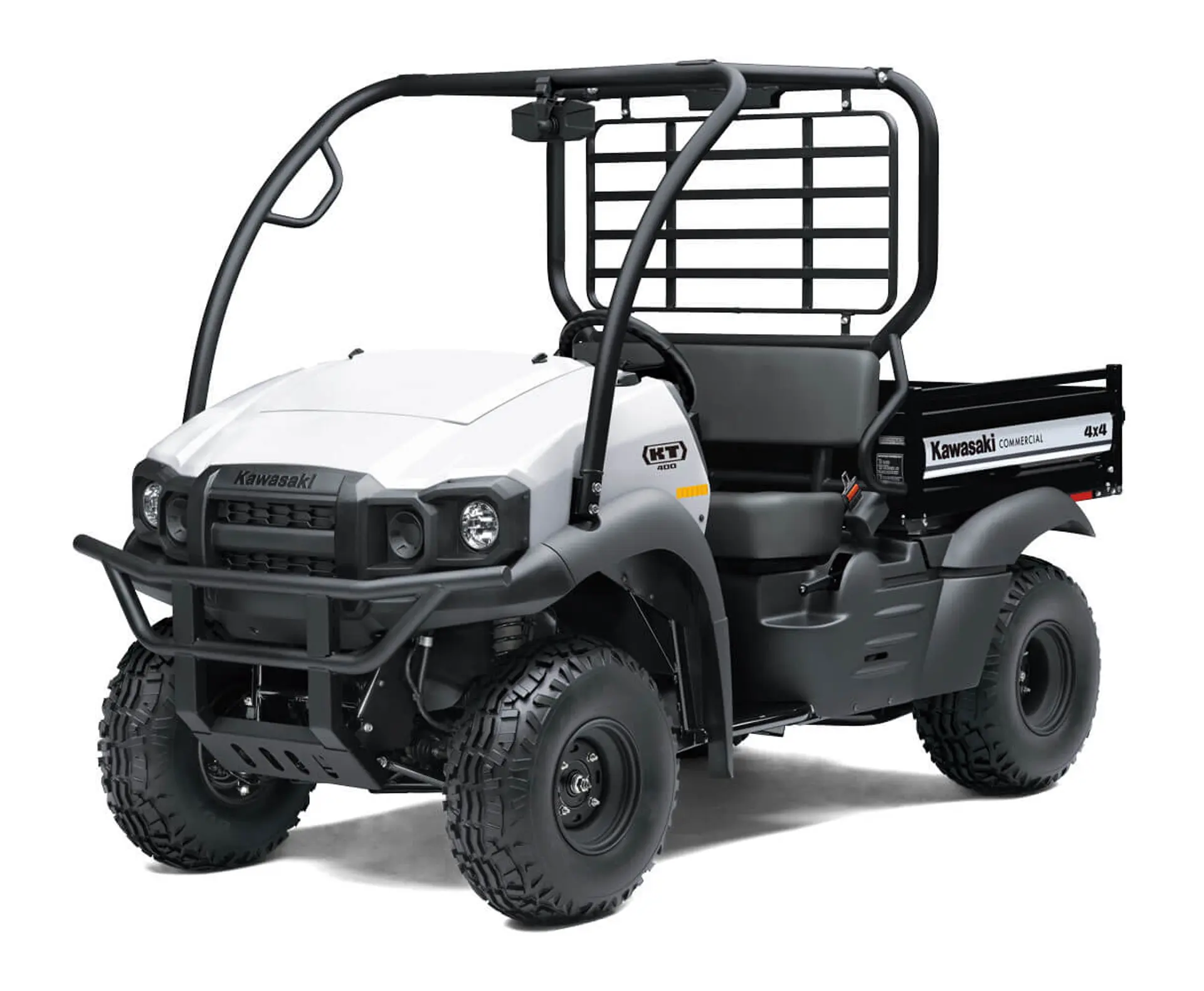

KT400 4x4 ST
Compact and productive
- 401CC 4-stroke engine
- Electrically selectable 2WD/4WD/differential lock
- 4.2-gallon fuel capacity
- 1,100 lb. towing capability
BASE MODEL MSRP*$8,899.00
Features
Our UTVs are versatile, reliable, and designed for tough tasks. Hauling, towing, transporting, and more — these vehicles adapt to your needs.
Heavy-duty towing and payload
Six-ply non-directional tires
Durable steel cargo bed
Tough driveline
Specifications
The Kawasaki Commercial KT400 4x4 ST is a compact yet powerful UTV, designed for productivity and versatility. It’s equipped to reliably handle a range of tough tasks.
Main Features
Main Features
- Overall Length
- 106.7 in
- Overall Width
- 52.6 in
- Overall Height
- 70.9 in
- Curb Weight
- 1,056 lb
- Fuel Capacity
- 4.2 gal
- Maximum Torque
- 21.9 lb-ft @ 2,400 rpm
- Cargo Bed Load Capacity
- 400 lb
- Maximum Towing Capability
- 1,100 lb
- Engine
- 4-Stroke, Single-Cylinder, OHV, Air-Cooled
- Displacement
- 401 cc
- Fuel System
- Carburetor Nikki 6C1026
Performance
Performance
- Max. Torque
- 21.9 lb-ft / 2,400 rpm
- Min. Turning Radius
- 10.8 ft
- Cargo Bed Load Capacity
- 400 lb
- Cargo Box (Inside) L x W x H
- 35.6 x 40.9 x 9.6 in
- Seating Capacity
- 2 People
- Max. Permissible Load
- 891 lb
- Max. Towing Capability
- 1,100 lb
Engine
Engine
- Type
- 4st, 1-Cyl, OHV, Positive Air-Cooled
- Bore x Stroke
- 82.0 x 76.0 mm
- Displacement
- 401 cc
- Compression Ratio
- 8.6:1
- Fuel Supply
- Carburetor Nikki 6C1026
- Lubrication System
- Forced Lub. Wet
- Starting System
- EL. Starter
- Ignition System
- Magneto & Transistor
Drivetrain
Drivetrain
- Driving System
- 2WD / 4WD, Gear
- Transmission
- 2-SP. AUTOMATIC, Reverse
- Gear Ratios: Forward (High)
- 2.916 (35/24 x 36/18)
- Gear Ratios: Forward (Low)
- 4.315 (41/19 x 36/18)
- Gear Ratios: Reverse (Low)
- 3.750 (30/16 x 36/18)
- Primary Reduction Ratio
- 3.653 ~ 0.794 (Belt Converter)
- Final Reduction Ratio: Front
- 3.852 (16/18 x 39/9)
- Final Reduction Ratio: Rear
- 4.000 (64/16)
Frame
Frame
- Type
- Steel Tube, Ladder Type
- Suspension: Front
- MacPherson Strut
- Suspension: Rear
- Unit Swing
- Wheel Travel: Front
- 3.1 in
- Wheel Travel: Rear
- 3.1 in
- Caster (Rake Angle)
- 9°
- Trail
- 1.8 in
- Steering angle (Left, Right)
- 43° (IN) / 38° (OUT), 43° (IN) / 38° (OUT)
- Tire: Front
- 24 x 11.00-10 6PR
- Tire: Rear
- 24 x 11.00-10 6PR
- Tread (Front/Rear)
- 41.5 in / 39.4 in
- Brake: Front Type
- Drum (Hydraulic) L&R
- Brake: Rear Type
- Drum (Hydraulic) L&R
- Parking Brake
- Drum (Mechanical Internal Expansion Type On Rear Wheels)
Dimensions
Dimensions
- Overall Length
- 106.7 in
- Overall Width
- 52.6 in
- Overall Height
- 70.9 in
- Wheelbase
- 70.1 in
- Road Clearance
- 6.7 in
- Seat Height
- 30.7 in
- Curb Weight
- 1,056 lb
- Fuel Tank Capacity
- 4.2 gal
